AWIPS Build Changes for Hydro
Here are some hydro-relevant AWIPS build updates:
- Hazard Services Hydro Changes
- River Pro hazard generation discontinued
- Hydro HazSimo
- Workstation will be setup for practice mode
- Turnkey in May 2021
- IBW changes
- FFMP Basin table works again
- ITOs and focal points
- FFMP broke previous build - new fix, can restore ARIs workaround
- Hazard Services Hydrologic (IOC) - see Hazard Services VLab reference page for references

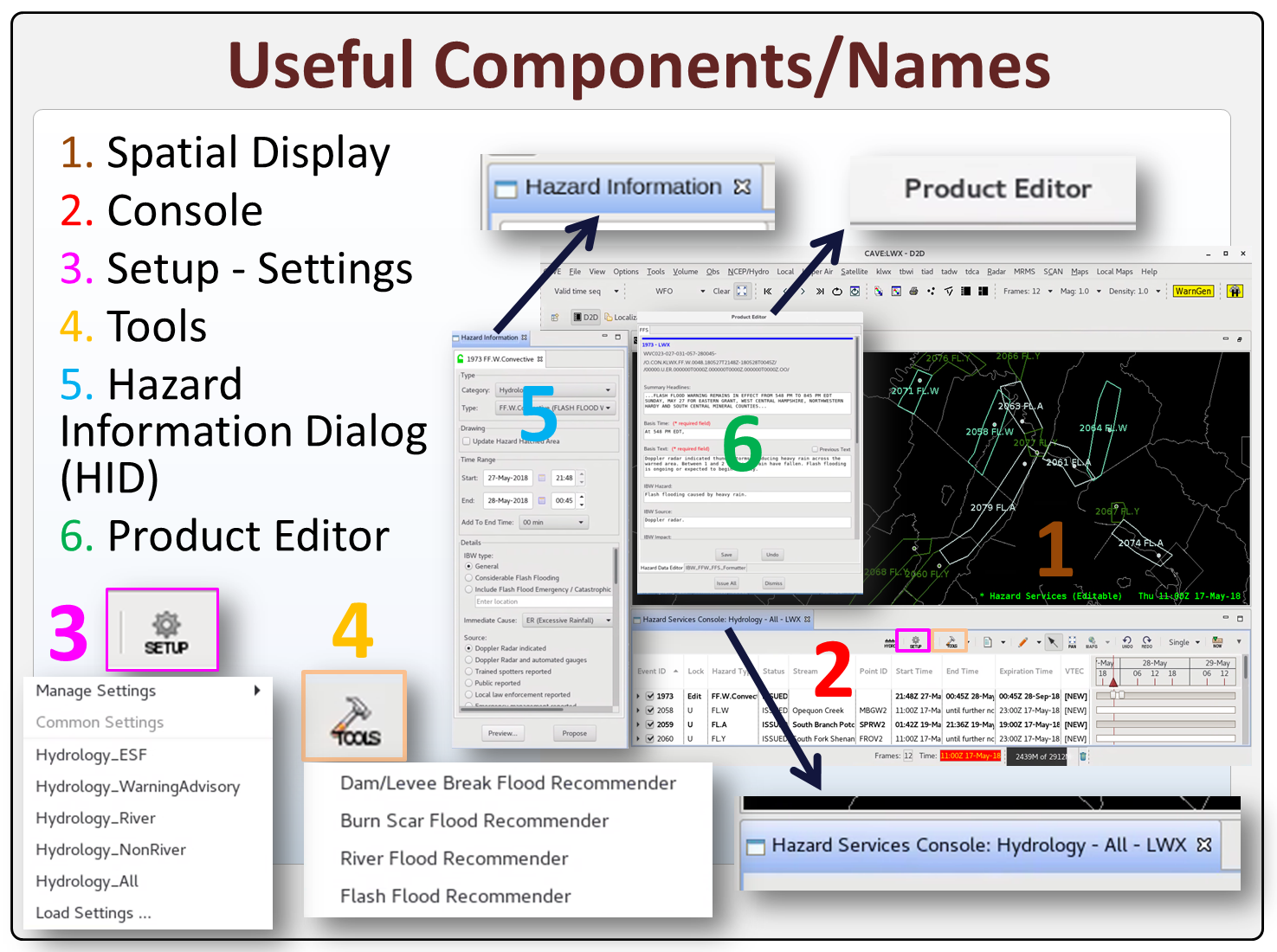

- New hazard generation software in AWIPS (Fig)
- Use it to issue all watch, warning, and advisory products for hydro
- Replaces WarnGen hydro component, RiverPro, GHGH
- Only hydro in this build
- Winter, Convective, Marine, etc will be progressively added over the next 2 years
- Lots of training
- User and focal point online training (Link)
- Focal Point residence workshops in at WDTD in Norman, OK

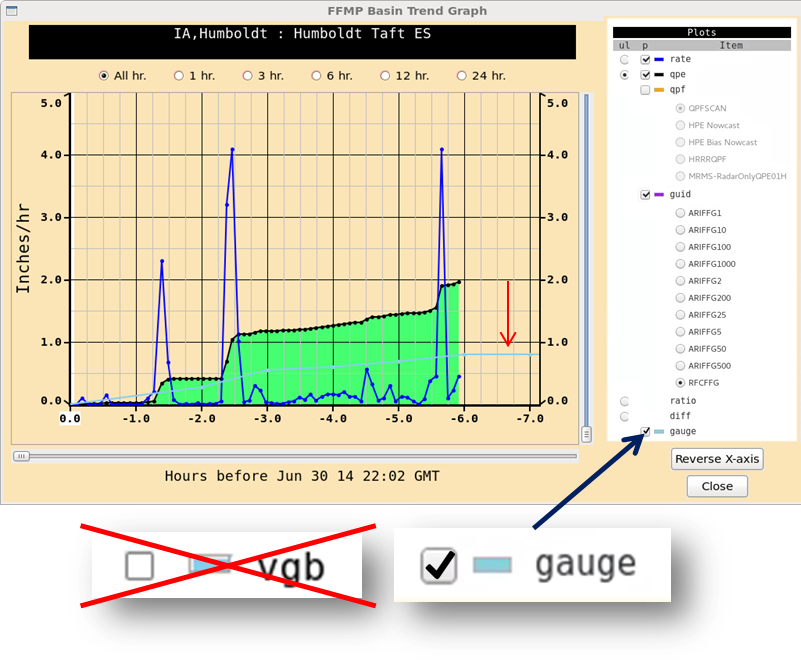

- FFMP Basin Trend plots all hours independent of the time duration slider bar (Fig)

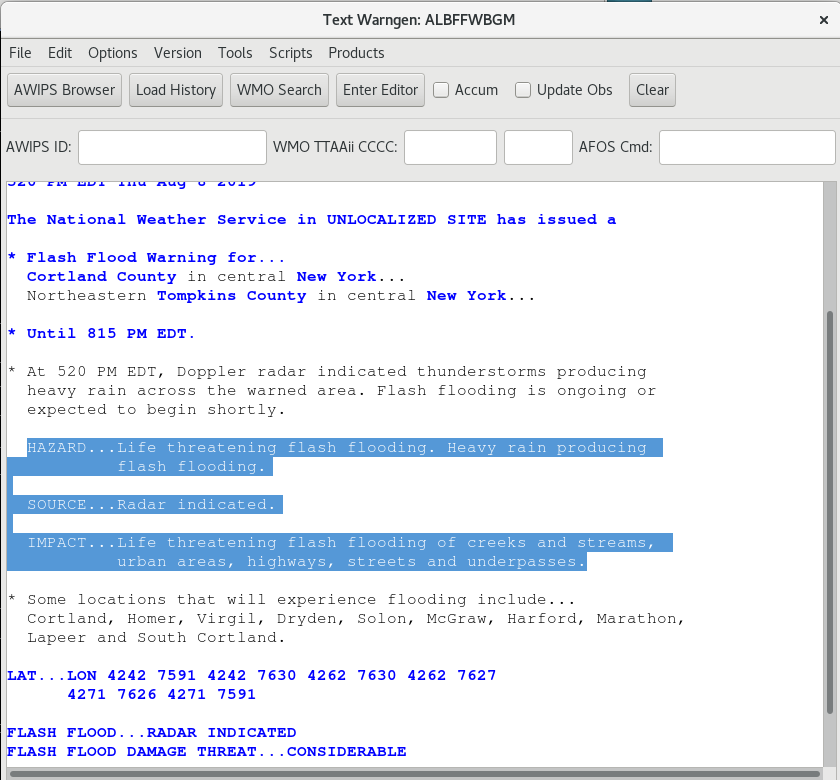

- IBW Flash Flood (Fig)
- Turned off by default
- Coordinated date to turn on later in 2019 after after field test
- MRMS Version 12
- New products and OCONUS expansion (Fig)
- LDAD feed first, SBN delayed
- Flood Warnings issued in RiverPro now display in CAVE
- 1-3 Day excessive rainfall data displays (Fig)
- FFMP VBG trace not backwards anymore (Fig)
- Under the hood
- IBW Flash Flood WarnGen templates
- WarnGen
- Preset Threat Area button replaces Dam Break Threat Area (can be used for airport weather warnings, dam break and burn scar warnings)

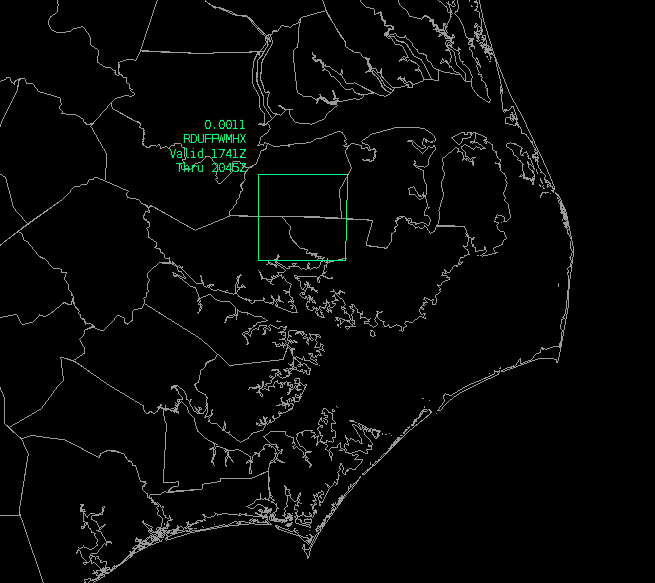

- Cancelled polygons in local warnings display update correctly (Fig)
- FFMP fixes
- VGB gauge overlay now properly labeled in basin trend overlay toggle
- FFG sometimes mapped to wrong basin fixed
- Focal Point can now filter VGBs from FFMP table for the numerous gauges that don't report precip (see "under the hood changes" below)
- New baseline FLASH MRMS menu
- QPF products not anticipated for some time; SBN FLASH data distribution later in 2018
- Under the hood changes
- VGB filtering in FFMPTemplateConfig.xml through localization perspective now fixed, e.g.:
- <excludedVGBs>
<vgb>AXA</vgb>
</excludedVGBs>
- <excludedVGBs>
- VGB filtering in FFMPTemplateConfig.xml through localization perspective now fixed, e.g.:

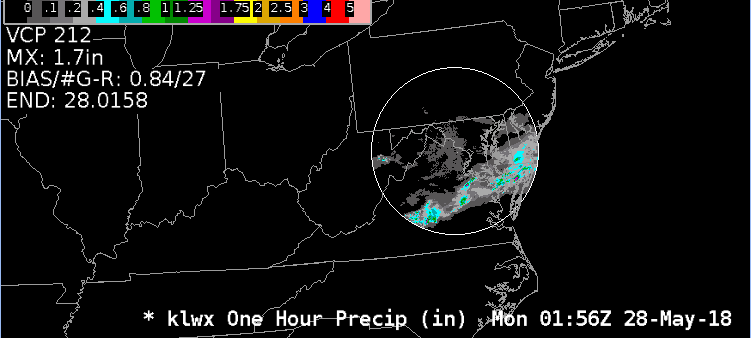

- MPE Fixes (DR List)
- High-Resolution Precipitation Nowcaster (HPN) Ingest Fixed
- Forecaster Jobsheet: Loading HPN from the Volume Browser
- Focal Point Jobsheet: Adjusting Rates Calculation for HPN Display
- MPE integrated into AWIPS 2 infrastructure
- Nothing notable for hydro
- Menus
- MRMS 5km CZ & RALA and FLASH
- CZ/RALA SBN coming fall 2016, FLASH on SBN later but some may ingest through LDAD
- MRMS 5km CZ & RALA and FLASH
- Laps/MSAS at RFCs
- LAPS and MSAS are now running at RFCs.

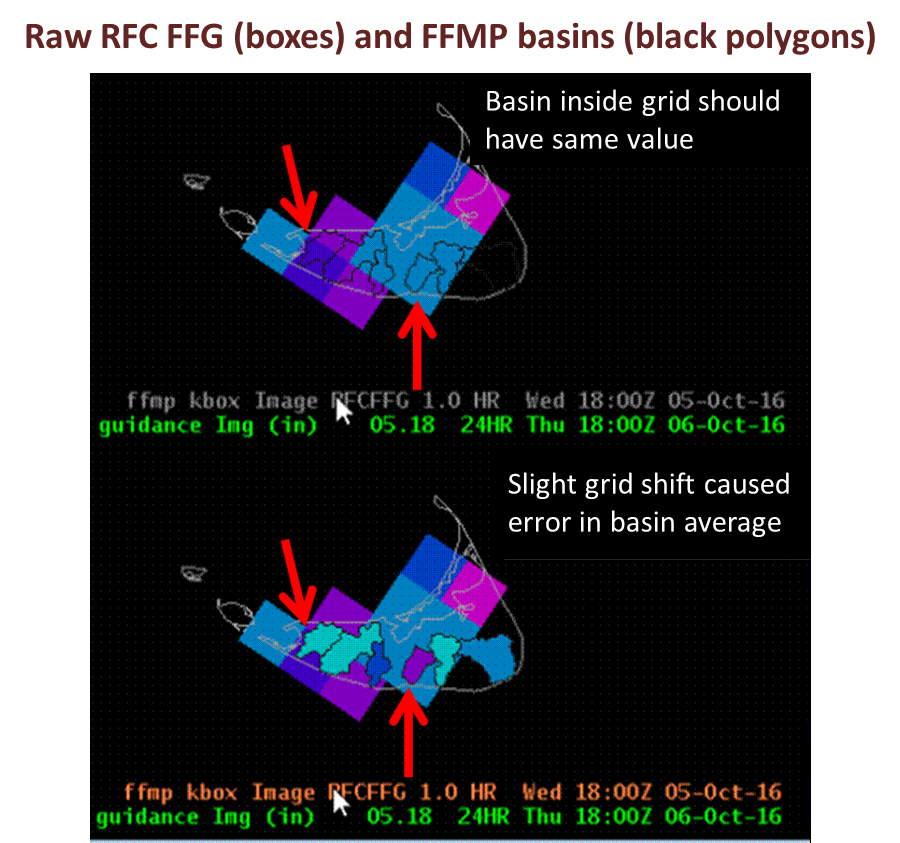

- FFMP Updating Multiple-RFC FFG Fix
- Starting in 16.2.1 in domains with multiple RFCs, when one updated, the others would incorrectly go missing. In 16.2.2 this was fixed, but the data incorrectly updated with older FFG. This is being fixed in 16.2.2 patch 2 which will roll out sometime during deployment of 16.2.2.
- MRMS and ARI into FFMP
- Annual Recurrence Interval (ARI) data will be able to be used as guidance similar to RFC Flash Flood Guidance (new reference page and job sheets).
- Training in CLC (Internet): Part 1: Intro to ARIs, speaker notes PDF
- Training in CLC (Internet): Part 2: Using ARIs in AWIPS, speaker notes PDF
- MRMS SPR data ingested into FFMP in 16.2.1 (Scan menu)
- ARI and MRMS FFMP Configuration Support Page contains extra information on how to set up ARIs and MRMS in FFMP
- FFMP usage tips page (new reference page) for the FFMP guidance in the 16.2.1 Informational Overview
- Annual Recurrence Interval (ARI) data will be able to be used as guidance similar to RFC Flash Flood Guidance (new reference page and job sheets).
- Dual-Pol DPR in FFMP Fixed
- DPR ingest in FFMP has been incorrect, but it is fixed after 16.2.1 patch 1 (note HPE mosaic has been Dual-Pol since 14.3.1 and has no problems).
- mPING (new reference page and job sheet)
- The crowd-source mPING surface observations can be displayed in D2D if you configure the ingest through LDAD.
- Nothing notable for hydro

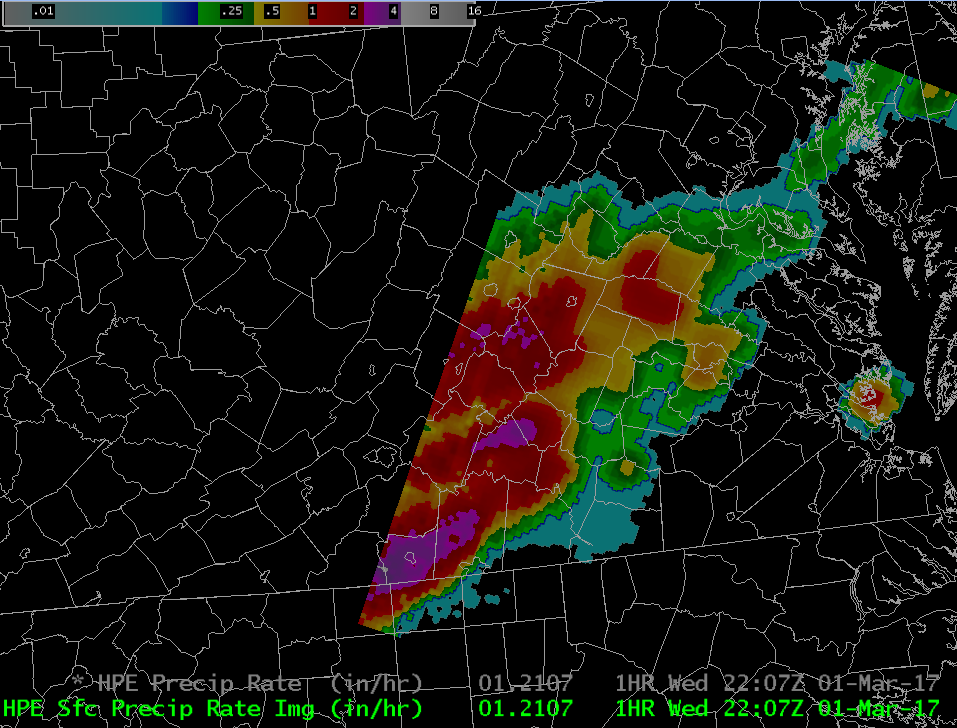

- Dual-Pol HPE
- The mosaic precip source HPE was changed to use Dual-Pol DPR as input (instead of Legacy DHR) and special overlays were added to FFMP and the volume browser to display the source and biases used in Bias HPE. The original training to support this was the "Incorporating Dual-Pol HPE/Bias HPE Into Flash Flood Decision Making" module which also had an FFMP/HPE Reference PDF. This training has been updated and split into the following two modules:
- High-Resolution Precipitation Estimator (HPE) and Bias HPE (LMS Training - Internet)
- Flash Flood Warning Decision Making (LMS Training - Internet)
- Reference PDF to be updated later.
- The mosaic precip source HPE was changed to use Dual-Pol DPR as input (instead of Legacy DHR) and special overlays were added to FFMP and the volume browser to display the source and biases used in Bias HPE. The original training to support this was the "Incorporating Dual-Pol HPE/Bias HPE Into Flash Flood Decision Making" module which also had an FFMP/HPE Reference PDF. This training has been updated and split into the following two modules:
For questions or comments about AWIPS build training, please contact Michael Magsig at WDTD.
