Forums

Back

Verification stats by station

RSS (Opens New Window)(Opens New Window)
SL
Steven Levine, modified 8 Years ago.

Verification stats by station

Youngling Posts: 174 Join Date: 11/13/14 Recent Posts
Greetings,

We've gotten several requests for verification stats recently and we're working on a job to generate them.  These would be observation-analysis stats going back some number of days (30 or so but that number can change), and the idea is to plot them in such a way that you can see where the biggest errors are.

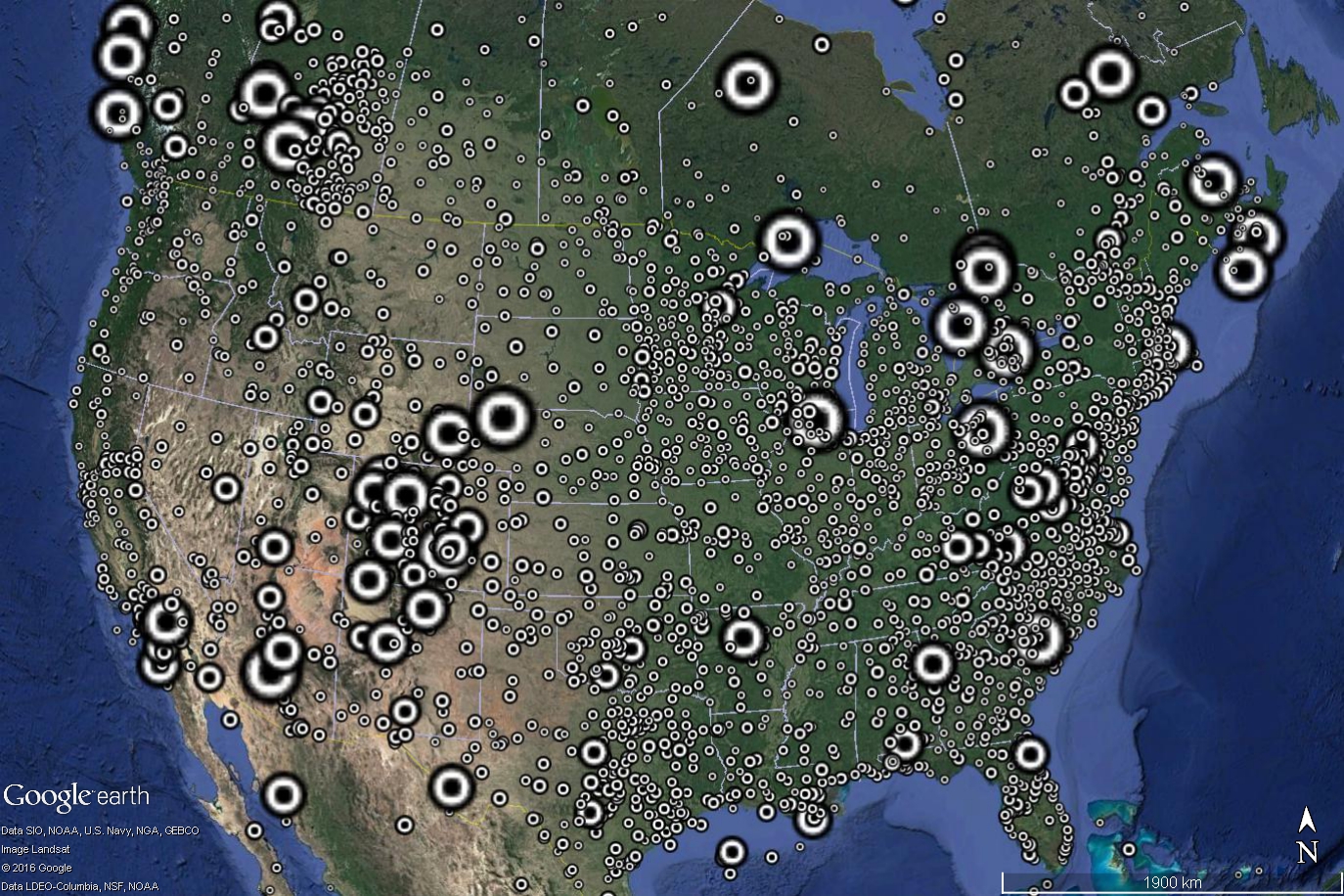

Here is a sample file of what I'm working on. It's a KML file of placemarks at each METAR site, with larger dots for larger errors.  If you open the KML file, you can click on the point and it gives you the stationID and MAE and bias against both the obs and the background field.  This is for temperature for a period over the previous winter, but it could be expanded to other variables like wind speed, too.  Mesonet sites can be brought in too, if you want.

The idea is that we could generate something like this once a day and put the file on an FTP server where you could grab it.

It is worth mentioning that this would NOT be a part of the operational RTMA or URMA jobs, and would be subject to periodic outages.  This would allow us to make changes quickly if we need/want to without going through central ops.

Some of you have probably picked up by now that I like the KML format because you can then plot the files yourselves in a layer, and you have point-click features that you don't get in a static graphic.  If anyone has any other suggestions for other formats you may find more convenient or useful, please let us know.  The same goes for the format of this file.

If you like something just like this, I can start pumping these out as soon as next week.

I appreciate any feedback/suggestions you might have on this.  My thanks also to Dave Bernhardt who originally suggested these files and this format.

Steve

Attachments:

Attachment

MU
Mike Umscheid, modified 8 Years ago.

RE: Verification stats by station

Youngling Posts: 2 Join Date: 10/26/16 Recent Posts

This is great Steve!  I'm really looking forward to seeing some of the wind speed biases out on the plains. Particularly when ASOS/AWOS stations are reporting >= 18 knots sustained, because that's when RTMA/URMA wind speed low-biases really show up (as I've discussed in offline e-mail).

Mike U

JC
James Clark, modified 8 Years ago.

Re: [RTMA/URMA Evaluation/Feedback Group - RTMA/URMA Feedback Forum] Verifi

Youngling Posts: 11 Join Date: 8/13/15 Recent Posts
I really like these as well.  I have been looking at quick ways to assess sites/situations were the RTMA/URMA isn't performing well here at GJT.  This will allow us to monitor performance and handicap the BC grids when necessary.

Thanks,

JV




_________________________________________________________________________
James V. Clark III (JV)
Information Technology Officer
National Weather Service
Grand Junction, CO
970-243-7007 x486

The difference between a successful person and others is not a lack of strength, not a lack of knowledge, but rather a lack of will. -- Vince Lombardi

On Fri, Oct 28, 2016 at 2:36 PM, RTMA Feedback Forum <RTMA.Feedback.VLab@noaa.gov> wrote:
Greetings,

We've gotten several requests for verification stats recently and we're working on a job to generate them.  These would be observation-analysis stats going back some number of days (30 or so but that number can change), and the idea is to plot them in such a way that you can see where the biggest errors are.

Here is a sample file of what I'm working on. It's a KML file of placemarks at each METAR site, with larger dots for larger errors.  If you open the KML file, you can click on the point and it gives you the stationID and MAE and bias against both the obs and the background field.  This is for temperature for a period over the previous winter, but it could be expanded to other variables like wind speed, too.  Mesonet sites can be brought in too, if you want.

The idea is that we could generate something like this once a day and put the file on an FTP server where you could grab it.

It is worth mentioning that this would NOT be a part of the operational RTMA or URMA jobs, and would be subject to periodic outages.  This would allow us to make changes quickly if we need/want to without going through central ops.

Some of you have probably picked up by now that I like the KML format because you can then plot the files yourselves in a layer, and you have point-click features that you don't get in a static graphic.  If anyone has any other suggestions for other formats you may find more convenient or useful, please let us know.  The same goes for the format of this file.

If you like something just like this, I can start pumping these out as soon as next week.

I appreciate any feedback/suggestions you might have on this.  My thanks also to Dave Bernhardt who originally suggested these files and this format.

Steve

--
Steven Levine RTMA/URMA Evaluation/Feedback Group Virtual Lab Forum http://vlab.noaa.gov/group/715073/discussions-forums-/-/message_boards/view_message/1741486 RTMA.Feedback.VLab@noaa.gov
